| Τόπος καταγωγής: | Κίνα |
|---|---|
| Μάρκα: | LE/ OEM |
| Πιστοποίηση: | CE ROHS |
| Αριθμό μοντέλου: | WD1 |
| Έγγραφο: | LE Catalogue 2026.01.27_7_W...D1.pdf |
| Ποσότητα παραγγελίας min: | 100 |
| Συσκευασία λεπτομέρειες: | ΧΑΡΤΟΚΙΒΩΤΙΟ |
| Χρόνος παράδοσης: | 25-30 ημέρες |
| Όροι πληρωμής: | T/T |
| Όνομα προϊόντος: | Ντουλάπι τοίχου 4U 6U 9U 12U 19 ιντσών 600x550mm δεδομένων διπλής διατομής | Τύπος: | Ντουλάπι δικτύου τοίχου |
|---|---|---|---|
| Έγχρωμη σειρά: | Ral9004; Ral9005; Ral7035 | Υψος: | 4U-27U |
| Υλικό Πάχος: | 1.2mm/προσαρμοσμένο | Ικανότητα φόρτωσης: | Στατικό φορτίο: 60kg |
| Βαθμός προστασίας: | IP20 | Φινίρισμα επιφάνειας: | Απολιπαρίσματα, παρασκευές, φωσφορίσματα, επίστρωση σε σκόνη |
| Εφαρμογή: | Τηλεγράφηση δικτύων | Υπηρεσία OEM: | Αποδέχομαι |
| Επισημαίνω: | 19 inch wallmount server cabinet,dual section server rack with removable panels,600x600mm data cabinet with warranty |
||

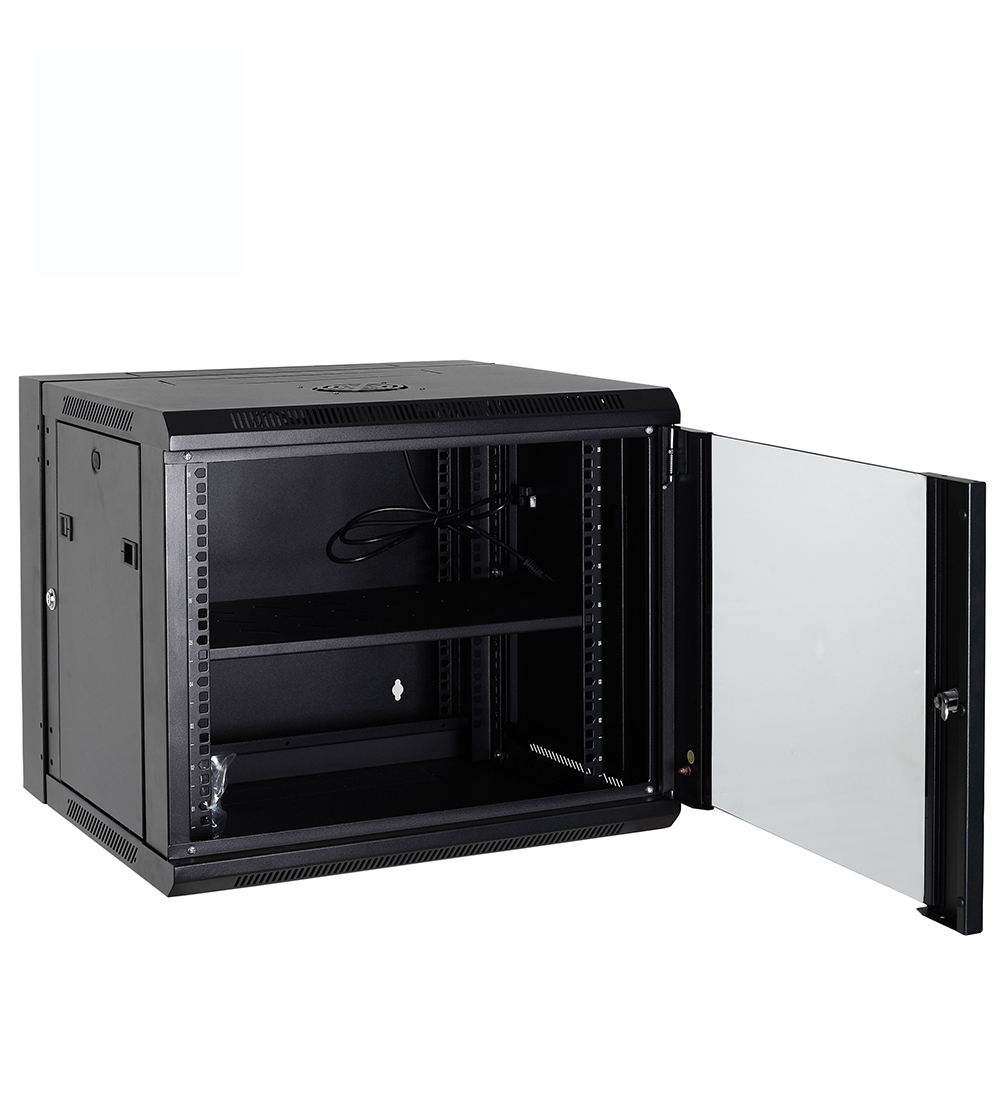

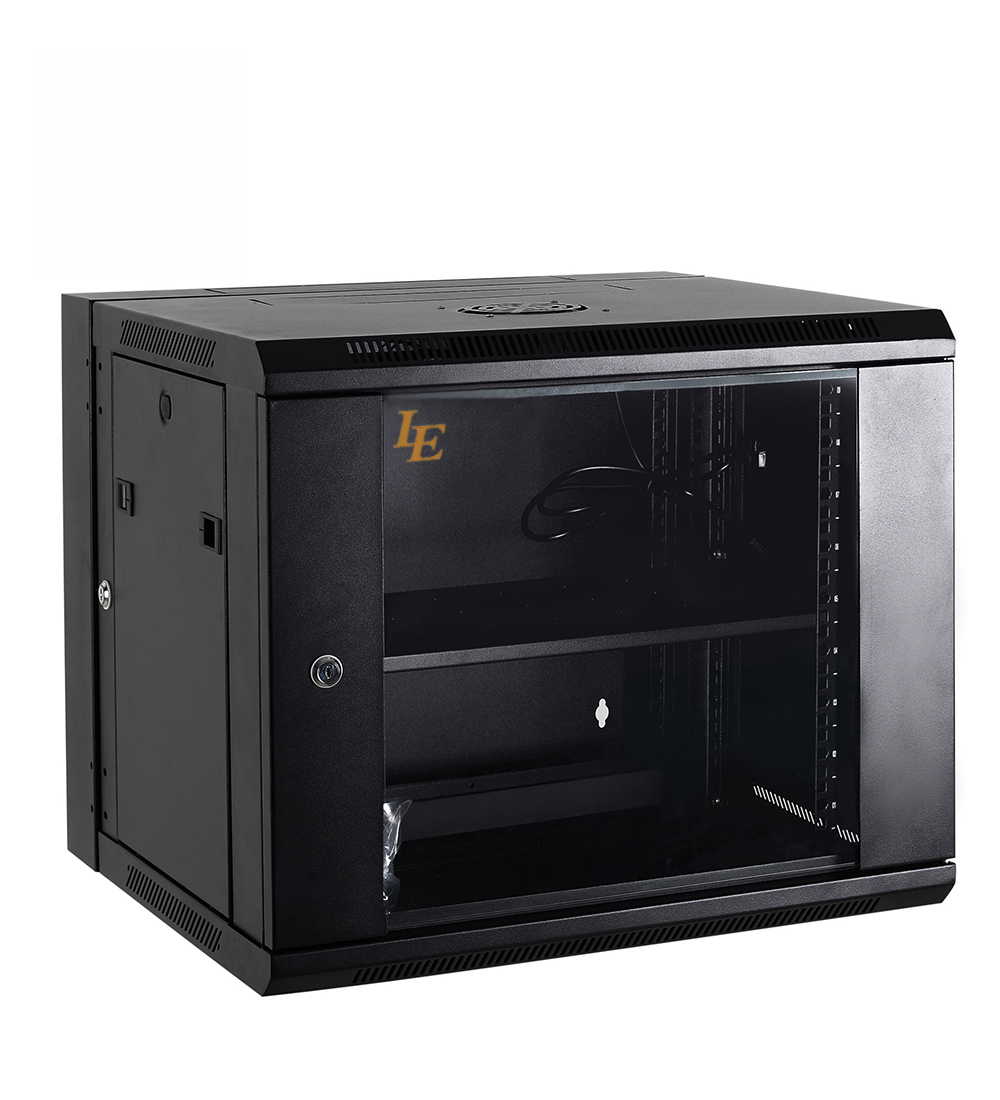

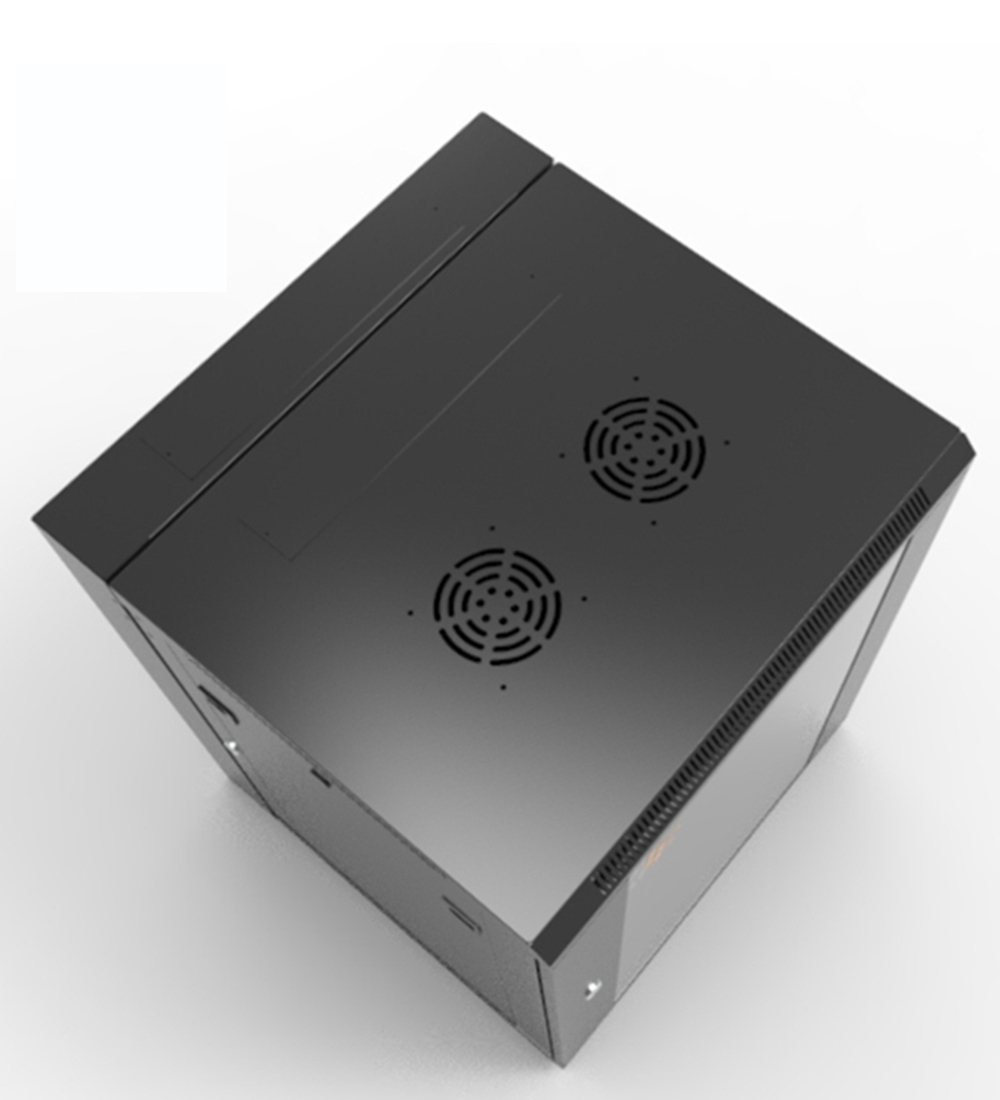

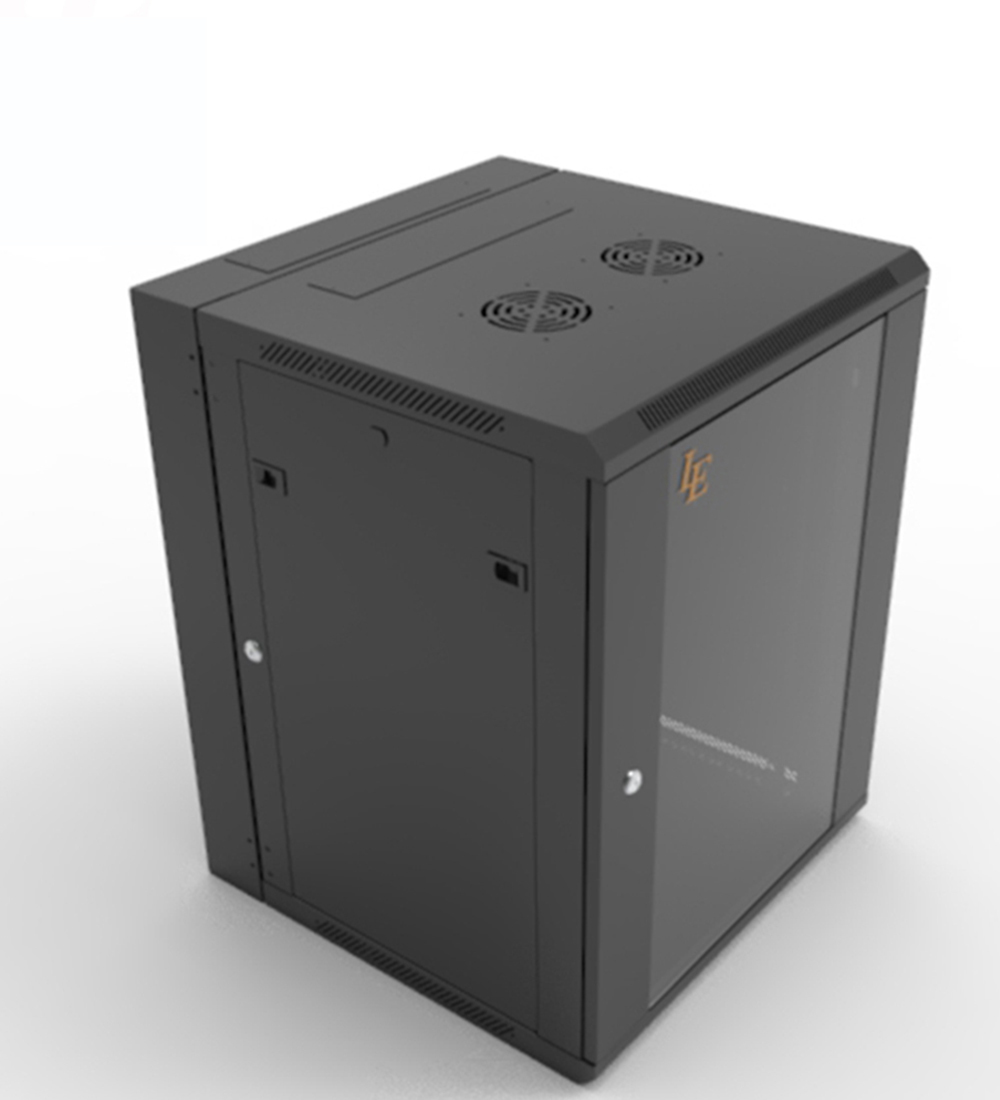

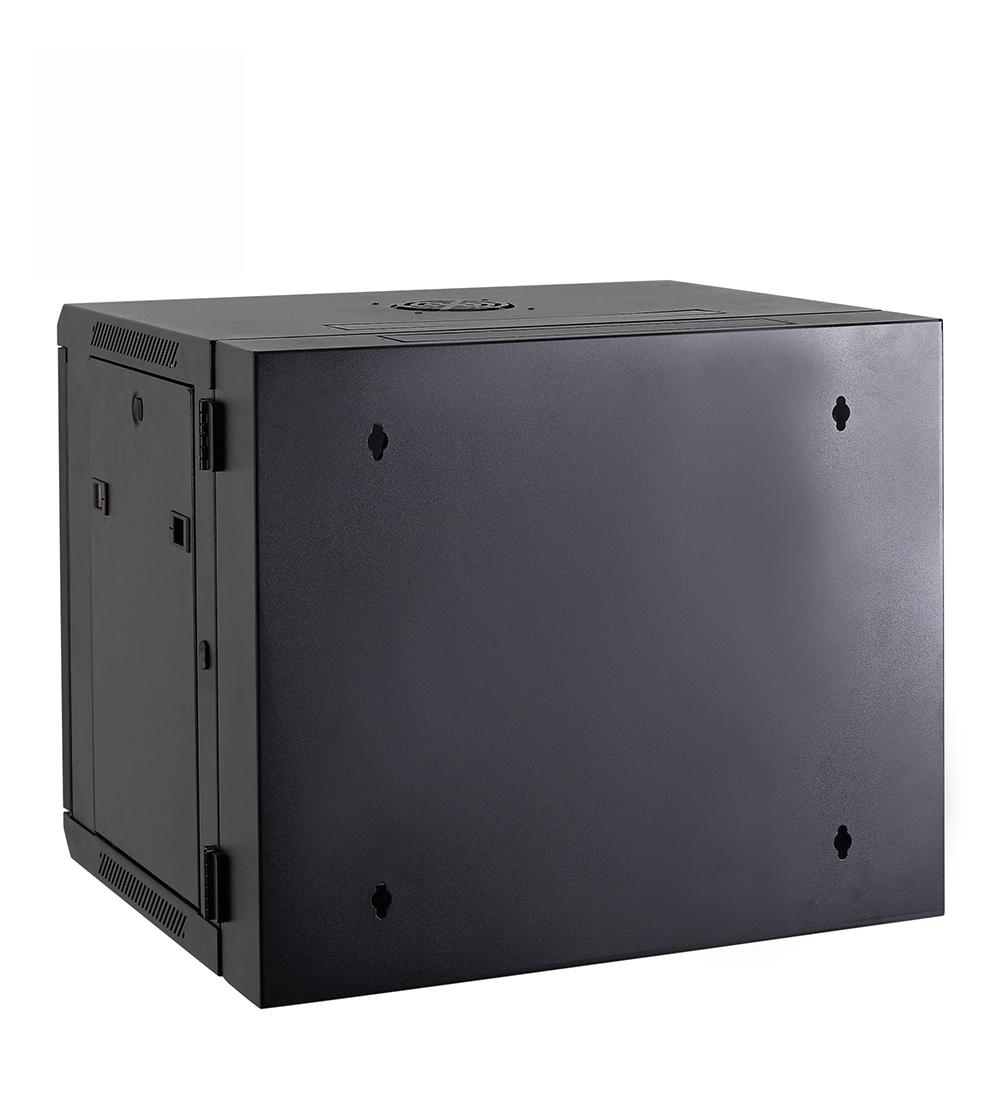

4U 6U 9U 12U 19 Inch 600x550mm 600x600mm Data Dual Section Wallmount Cabinet with Removable Side Panels
![]()
![]()
![]()
![]()
| S/N | LE-WD1 |
| Standard |
Comply with ANS/EIA RS-310-D, IEC297-2, DIN41491, PART1, DIN41491, PART7, ETSI Standard |
| Material | SPCC quality cold rolled steel; Thickness:1.2mm Tempered glass: Thickness:5.0mm |
| Loading Capacity | Static loading: 60kg |
| Degree of protection | IP20 |
| Surface Finish | Degreasing; Pickling; Phosphating; Powder Coated |
| Product Specification | 4U-27U Width: 600mm Depth: 550mm, 600mm |
![]()
|
Main Structure
1. Cable entry plate 2. Back box (swing) 3. Frame 4. Side panel 5. Mounting profile (L-shaped) 6. Steel front door 7. Tempered glass front door 8. Tempered glass front door with vented border 9. Tempered glass front door with meshed border |
![]()
![]()
![]()
Ningbo Latitude International Trade Co.,Ltd is a professional manufacturer specialized in server cabinet, network cabinet, outdoor cabinet, wall cabinet and other communication equipment. For over years, we are always devoting ourselves to research, develop, design and manufacture the indoor and outdoor cabinet products. striving to be effectively dynamic and innovative and always maintained a steady growth although the extremely competitive market, we have the advanced equipment including TruLaser incision machine, TruPunch Presses machine, CNC equipment, spraying paining line and other equipment. In order to assure the stable and high quality of products, we develop the quality control system and operate the manufacturing procession under the International quality system certification.
Our Advantages
1. 100% Manufacturer.
2. Our steel is from Shanghai ShouGang group corporation, higher quality assurance.
3. Japan and Germany CNC machine, professional infrared test equipment, higher precision, more stringent testing.
4. Laser cutting machine and Germany WAGNER auto painting equipment, higher efficiency.
5. 5 ply corrugated with import Meika outside paper carton, glued to avoid scratch, more carefully protection.
6. Professional container loading team, take full advantage of the space and avoid shaking, save your delivery cost.
7. On time delivery rate more than 95%.
![]()
![]()
1. Q: Are you a factory or trading company?
A: We are a Factory, Distributor and Trading Company.
2. Q: Where is your factory located? How can I visit there?
A: Our factory and office is located in Ningbo City, China. You can fly to Ningbo airport or
Shanghai airport, from home or abroad, are warmly welcome to visit us!
3. Q: Can you do OEM?
A: Yes, we can do OEM products. It's no problem.
4. Q: How can I get some samples?
A: We are honored to offer you samples.
5. Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality controlling for to the every
end. Our factory has gained CE,ROHS,SGS authentication.
